Binocular & Trinocular Microscope

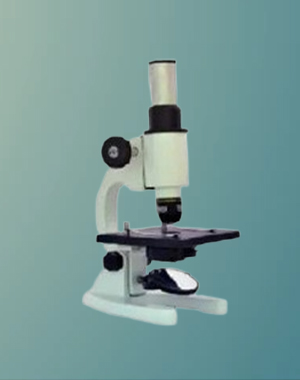

Single Nose Microscope
| Feature | Specification |
|---|---|
| Base | Cast iron base |
| Body | Inclinable body |
| Coarse Motion | Rack & Pinion system |
| Packaging | Packed in Thermocole box |
| Stage | Fitted with Irish Diaphragm underneath, Stage clip on it |
| Magnification | 100X |
| Eye Piece | 10X |
| Objective | 10X |
| Colour | Black |
| Feature | Specification |
|---|---|
| Base | Cast iron base |
| Body | Inclinable body |
| Coarse Motion | Rack & Pinion system |
| Packaging | Packed in Thermocole box |
| Stage | Fitted with Irish Diaphragm underneath, Stage clip on it |
| Magnification | 100X |
| Eye Piece | 10X |
| Objective | 10X |
| Colour | Black |

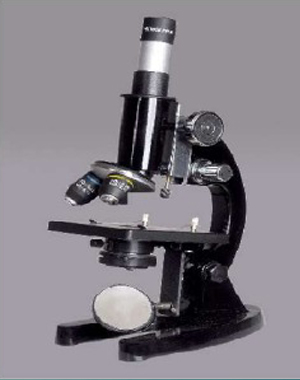

Economy Model Student Microscope
| Feature | Specification |
|---|---|
| Construction | Metal body with revolving quadruple nosepiece |
| Tube | 45° inclined, fully rotatable |
| Packaging | Wooden box, vinyl cover, manual |
| Magnification | 50X to 1000X |
| Objective | 5X, 10X, 40X, 100X (Oil) |
| Focusing | Coarse and fine motion knobs |
| Stage | 140 × 120 mm with coaxial system |
| Illuminator | 6V-20W halogen or 3W LED |
| Condenser | Abbe type, with rack & pinion adjustment |

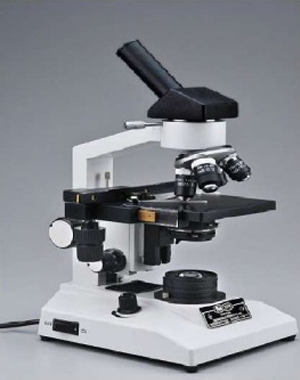

Inclined Monocular Microscope

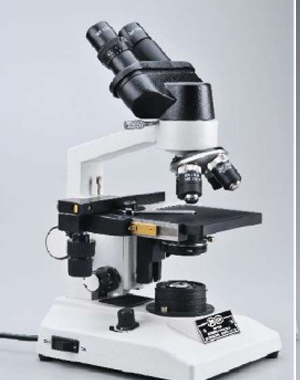

Binocular Research Microscope
| Feature | Specification |
|---|---|
| Design | Heavy aluminum base with electrical fittings, inclined metal stand |
| Packaging | Optional wooden box with instruction manual and vinyl cover |
| Magnification | 50X to 1000X |
| Eye Pieces | Paired Huygenian WF 10X |
| Objective | 5X, 10X, 40X, 100X (Oil, Parfocal) |
| Nose Piece | Quadruple nosepiece for precise objective movement |
| Focusing System | Co-axial coarse and fine motion knobs |
| Stage | Mechanical stage with clips for easy slide manipulation |
| Head | 45° inclined binocular, adjustable interpupillary and diopter distance |
| Illuminator | BV-20W halogen lamp, LED options, with condenser and diaphragm |
| Feature | Specification |
|---|---|
| Design | Heavy-duty microscope, ideal for classroom or small group demonstrations |
| Focusing System | Coarse and fine focusing |
| Nose Piece | Triple revolving nosepiece |
| Objectives | 10X & 200X |
| Eyepiece | 10X |
| Projection Screen | 110mm diameter |
| Illuminator | 12V 20W halogen lamp with easy control |
| Packaging | Plywood box |

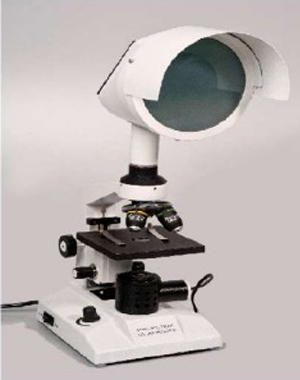

Projection Microscope

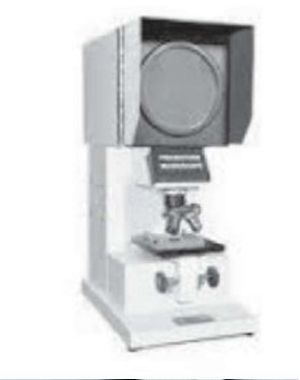

Senior Projection Microscope
| Feature | Specification |
|---|---|
| Design | Dual purpose instrument with a 150mm diameter built-in fine grain glass screen |
| Illuminator | 12V-100W halogen lamp |
| Pointer | Loop & Arrow pointer |
| Stage | Mechanical stage |
| Objectives | 10X & 40X |
| Eyepiece | 10X |
| Cooling System | Cooling fan |
| Packaging | Packed in a cardboard box |
